316L Stainless Steel Elliptical Dished End Pressure Vessel Tank Heads
Haipei Industry Stainless Steel 304 Elliptical Heads 320-mes polishing surface stainless steel heads in both ASME 2:1 Elliptical and ASME Flanged & Dished styles material Stainless SteelSA240 304/304L dished tank heads
Products DETAILS
316L Stainless Steel Elliptical Dished End Pressure Vessel Tank Heads
316 stainless steel elliptical dished end pressure vessel tank heads
|
Product Name |
Torispherical head , ellipsoidal head, dished head ,teel hemisphere , half bowl , half sphere , fire pit bowl , hemispherical head |
|
Material |
stainless steel , carbon steel , aluminuim , corten steel |
|
Surface treatment |
natural color , sandblasting , mirror polishing , acid pickling ,etc |
|
Connection |
Butt-welding |
|
Application |
Such as fire pit , oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
|
Technics |
hot pressing , cold pressing |
|
Packing |
Wooden cases ,wooden pallet plastic bag or as per customers requirement |
Our ellipsoidal head (also called elliptical head or elliptical dish end) is usually made with Carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked.
We can produce up to 8,000 mm diameter asme torispherical dish end depending upon thickness of material and wall thickness up to 30 mm depending upon material and diameter. custom forms and dimensions are also available.
The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1.
Size range: 50mm-13000mm with integral formed,larger sizes with subsection formed can be specified.
Haipei Industry with unique head forming, fabrication and heat treating capabilities, we offer a diversified range of products. Head diameters is from 3.5" to 393.7'', and Head thickness is from 0.078" to 11.8''. Pressure vessel heads and tank ends are available in a broad range of sizes, shapes, thicknesses and material specifications.

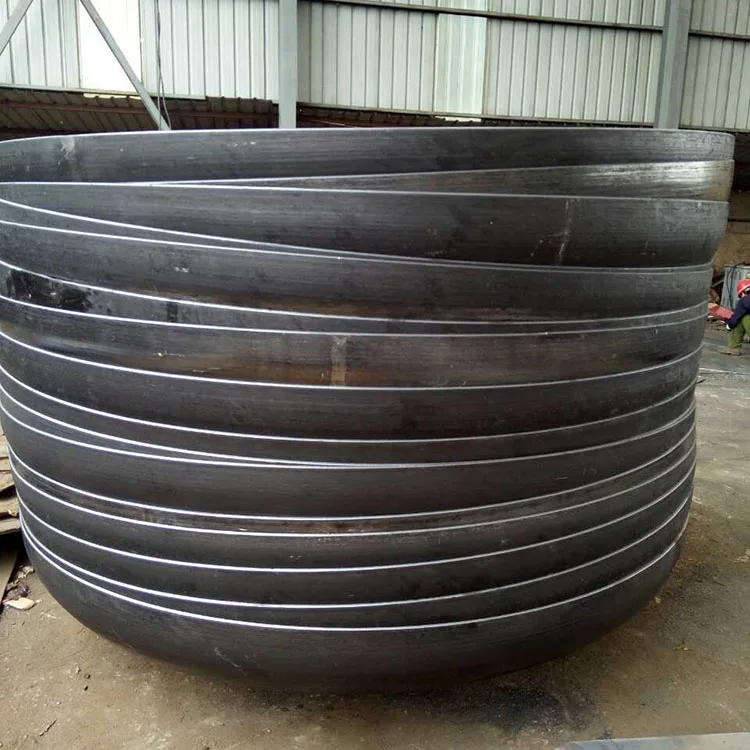

316 stainless steel elliptical dished end pressure vessel tank heads
1. Iron Frame
2. Wooden Box
3. Iron pallet
4.Wooden pallet.
5.Professional fixation
6. Curstomed requirment
Q: What’s the information should I provide when inquiry?
A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.
Q: what are surface treatment of the product?
A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.
Q: How do you ensure the quality of products?
A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.
Q: Can you help us matching related products?
A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
