Specification:

Tank heads are a critical component in various industries, including pharmaceuticals, chemical processing, and food and beverage storage. At Haipei Industry, we specialize in fabricating custom tank and pressure vessel heads, ensuring our clients receive high-quality products tailored to their specific applications. Our expertise and commitment to precision manufacturing make us a trusted partner in the industry.

Our Range of Tank Heads

Haipei Industry offers a diverse selection of tank heads to accommodate different industrial needs. Our experienced team works closely with customers to develop custom solutions that meet their exact specifications. Below are the types of tank heads we fabricate:

2:1 Elliptical Tank Heads

These tank heads are commonly used in pressure vessels due to their efficient design, which optimizes metal thickness while ensuring structural integrity. With a depth equivalent to one-quarter of the vessel’s internal diameter, they provide a cost-effective option for medium-pressure tanks. Available materials include:

• Carbon steel

• Stainless steel

• Clad

• Various ferrous and non-ferrous metals and alloys

90/17 Style 2:1 Elliptical Tank Heads

This type closely resembles the 2:1 elliptical design and adheres to ASME Section VIII Div. 1 UG 32 specifications.

ASME 80/10 Tank Heads

Engineered in accordance with ASME pressure vessel codes, these heads feature an internal dish radius equal to 80% of the diameter and a knuckle radius of 10%, ensuring compliance with safety regulations.

ASME Flanged & Dished (F&D) Tank Heads

These heads are designed to meet ASME standards and include:

• An internal dish radius equal to 100% of the diameter

• A knuckle radius of at least 6% of the diameter

They are ideal for applications where moderate pressure is required, and overall height considerations are crucial.

Conical Tank Heads

Commonly used in processing equipment such as evaporators, spray driers, crystallizers, and settling tanks, conical heads facilitate the collection and discharge of solids, making them ideal for specific industrial processes.

Dished-Only Tank Heads

Suitable for pressure vessels, reinforcement pads, vacuum chambers, domed roofs, and liners, these heads are available in:

• Carbon steel

• Stainless steel

• Clad

• Aluminum

• Other ferrous and non-ferrous alloys

Flanged-Only Tank Heads

These tank heads are widely used in liquid storage, particularly in the gas and petroleum sectors. While often applied in non-code applications, they can also be fabricated to meet ASME compliance under specific conditions.

Flared & Dished Tank Heads

Designed for industrial non-code uses such as bolt-on covers, hinged lids, and tank ends, these heads can be manufactured from:

• Carbon steel

• Stainless steel

• Aluminum

• Various ferrous and non-ferrous alloys

Reversed-Flanged & Dished Tank Heads

Featuring a concave dish and a knuckle radius, these tank heads are well-suited for vessels positioned on flat surfaces, such as steel tanks placed on concrete foundations. They provide structural reinforcement while serving as a load-bearing surface.

Shallow Tank Heads

With a radius exceeding the tank’s outer diameter, shallow heads are primarily used for horizontal storage tanks. However, they are not permitted in pressure-code applications.

Standard Flanged & Dished Tank Heads

Commonly found in storage tanks where ASME certification is not required, these heads feature:

• An internal dish radius equal to 100% of the diameter

• A knuckle radius of at least three times the material thickness

Toriconical Tank Heads

Unlike standard conical heads, toriconical heads incorporate a knuckle radius at the larger end, helping to minimize localized stress concentration. These are often used in hoppers and towers.

Why Choose Haipei Industry?

At Haipei Industry, we are committed to delivering exceptional quality, customization, and customer satisfaction. Our tank heads are manufactured with precision, meeting the highest industry standards. Whether you require a standard model or a custom-designed solution, our team is ready to assist you in finding the ideal tank head for your application.

For more details, reach out to us today and let Haipei Industry provide you with top-tier tank head solutions tailored to your needs.

Feature:

1.Hard Materials

Temperature and pressure resistance, corrosion resistance.
2.Strong resistance to pressure
Made of high-quality steel, strong pressure resistance.
3.Long use time
Not easy to rust, long use time, suitable for a variety of working environments.
4.Stable chassis
Standard thickness, good processing performance.
5.Various specifications
Various types of tank heads can be customized according to customer requirements.

Company information

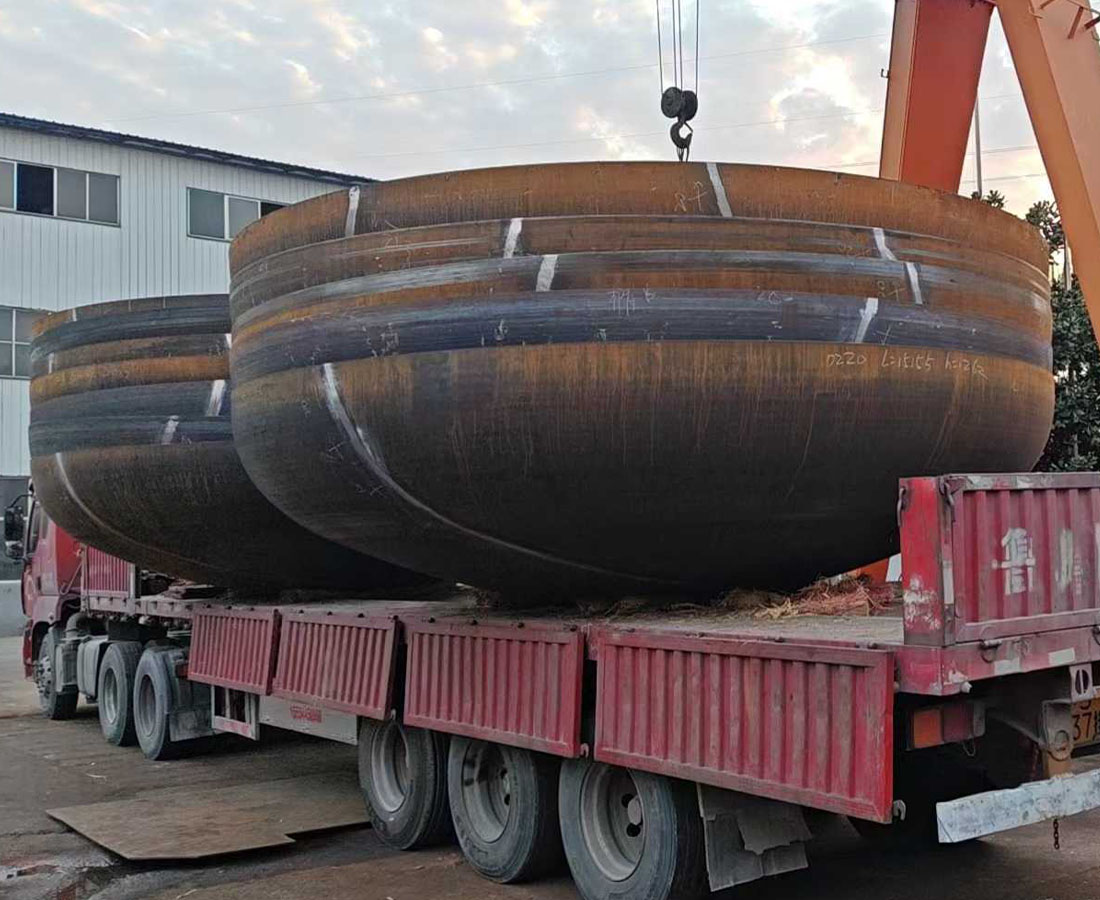

Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Haipei Industry Flanged & Dished Head offers both hot formed and cold formed tank heads made from carbon steel, stainless, and many other alloys as well as rolled cylinders In the field of pressure vessels, an F&D head refers to a "flanged and dished" head. F&D heads are typically used for low-pressure applications  ASME cold formed tank heads, hot formed tank heads, cones, and rolled/welded cylinders. F&D heads that are covered with Laser Plates allow you to reach temperatures of 570 °F, depending on the choice of materials specializes in manufacturing hot-formed and cold-formed tank heads from carbon steel, stainless steel, and various alloys. They also produce rolled cylinders and cones, catering to diverse industrial needs.F&D (Flanged & Dished) is commonly the same category as torispherical heads, defined by a crown radius and knuckle radius plus a flange. Ellipsoidal heads Dish Head Manufacturer & Tank Head Supplier Custom Heads Whatsapp:008618264838918

Haipei Industry ASME F&D head Flanged & dished heads are with a deeper dish making them more resistant to internal pressures. This shape is used for ASME vessel design. Compare tank head types: 2:1 elliptical, ASME F&D, and flat heads. Learn benefits, pressure ratings, and cost differences for your tank application.ASME Ratio Flanged and Dished Heads Shallow flanged and dished heads have a shallower dish radius than other head styles. This can save money and room on the overall height or length of the tank Shallow Flanged and Dished Tank Head ASME F&D heads (short for American Society of Mechanical Engineers flanged disc heads) are key components in pressure vessel design and are manufactured flanged and dished (F&D) heads comply with ASME requirements The main pressure‑vessel head types are Hemispherical, 2:1 Semi‑Elliptical (SE), ASME Flanged & Dished (F&D), Flat, and Quick‑Opening Closures.ASME cold formed tank heads, hot formed tank heads, cones, and rolled welded

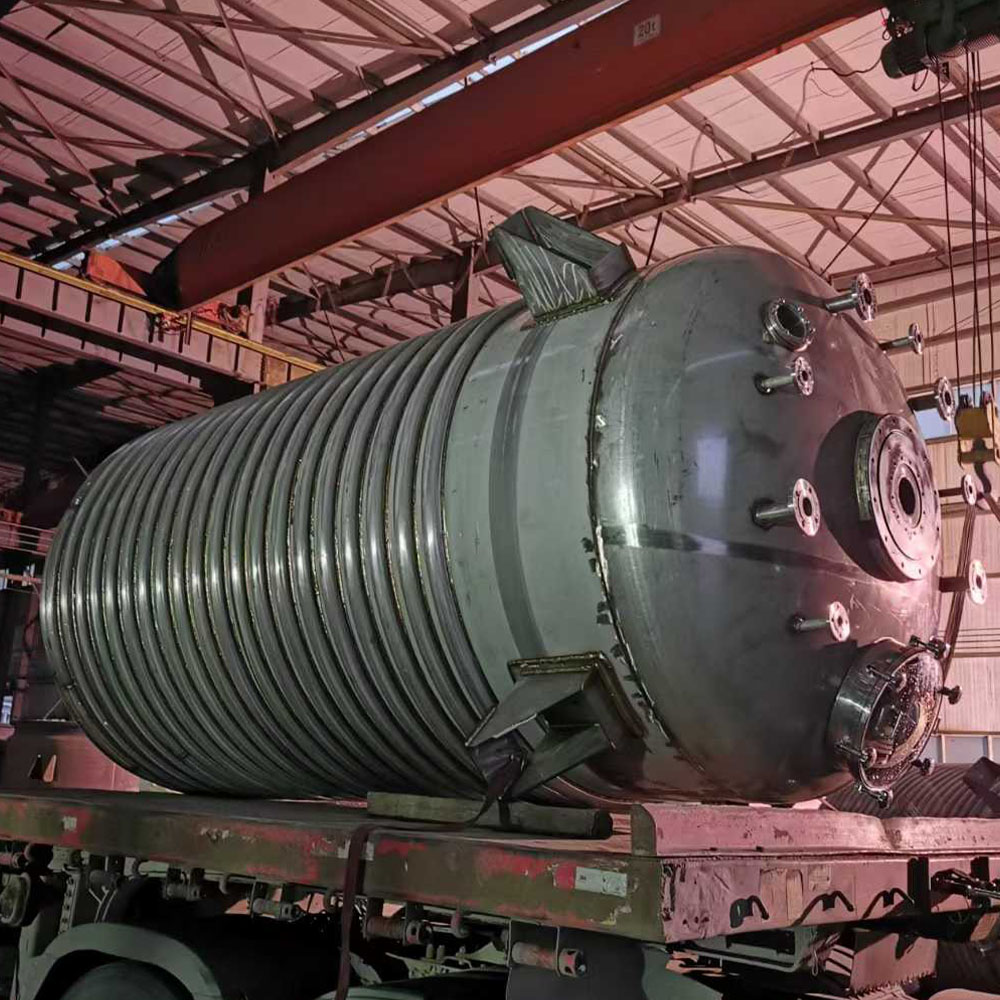

Packaging & Shipping

Carbon Steel Stainless End Elliptical Head Torispherical Heads Tank Dish Ends Pressure Vessel Heads for Sale

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
